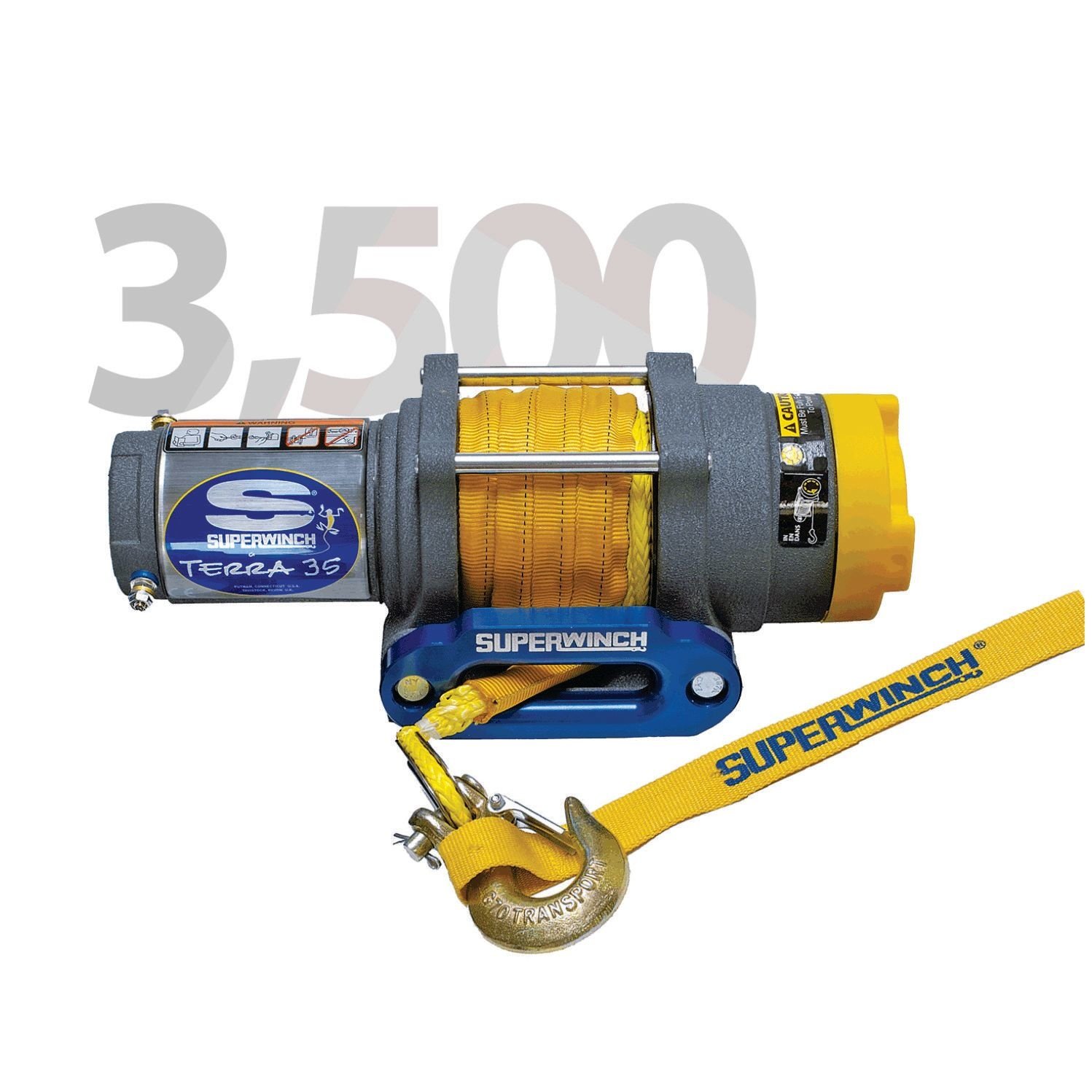

Superwinch - Terra 35SR 12v ATV/UTV Winch - Synthetic Rope
Superwinch's top-of-the-line ATV winch offers unmatched performance and longer life than any competitor. The Terra 35 SR is probably the world's best ATV winch. Why? Better gears, bigger motors, synthetic- design. No one can compete with the Superwinch Terra.
Superwinch Competitive Advantages:
Strong Motors One look at the Superwinch Terra motors massive copper windings, silky smooth end-to-end sealed bearings, and it's apparent this motor means business. These features translate into more power, faster cooling and better efficiency. Small motors with lesser windings and bushings in place of bearings to save cost will find themselves working too hard, heating too fast and making the winch less of a winch.
Stronger Gears
Superwinch Gears are 2X Wider. Extra wide gears for better engagement and longer life.
TERRA 35SR (P/N 1135230)
| Rated Line Pull | 3,500 lbs (1,588 kgs) |
| Motor | Sealed 1.6 HP Permanent Magnet |
| Gearing | 3-Stage Planetary |
| Gear Ratio | 140:1 |
| Solenoid | Sealed and Circuit Breaker Protected |
| Clutch | Free-Spooling, Ergonomic Control |
| Brake | Automatic 100% Load Holding |
| Rope | Synthetic 3/16" x 50' (4.8mm x 15.2m) |
| Hook | Heavy-Duty, Clevis Pinned Latch |
| Fairlead | Blue Anodized Aluminum Hawse |
| Remote | 10' Sealed Hand-Held |
| Dimensions | 13.4" L x 4.5" D x 4.8" (340mm L x 114mm D x 122mm H) |
| Drum Diameter | 2.0" (50.8mm) |
| Drum Length | 3.2" (81.3mm) |
| Mounting Bolt Pattern | 3.0" x 4.87" (76mm x 124mm) |
| Installed Weight | 17 lbs (7.7 kg) |
| Shipping Weight | 25.2 lbs (11.3 kgs) |
| Warranty | Limited Lifetime |
| UPC | 0 22705 00345 2 |
| Line Pull: 0 lbs | 19 Amps Motor Draw / 22.5 FPM (6.9 MPM) Line Speed |
| Line Pull: 3,500 lbs | 190 Amps Motor Draw / 9.3 FPM (2.8 MPM) Line Speed |
