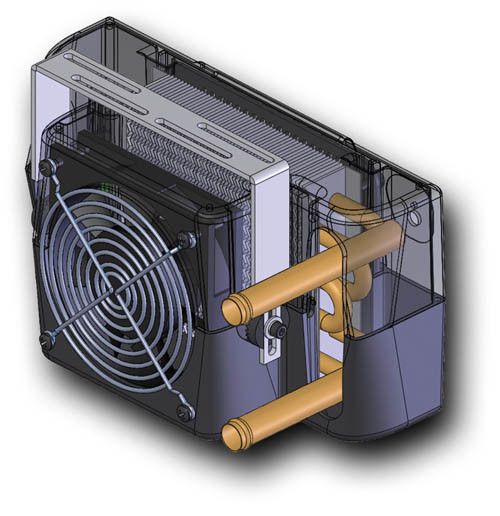

AH-100 Cabin Heater System
Btu/h performance ratings are based on 170ºF/77ºC coolant temperature at standardized flow rates for SxS UTVs; installed performance depends on the coolant temperature and flow rate of the vehicle.
Features
- - Maximum 4,000 BTUs per hour - Fan output 100 CFM
- - Rigid Mounting Bracket with 180-degree bracket rotation
- - Locking clamp support

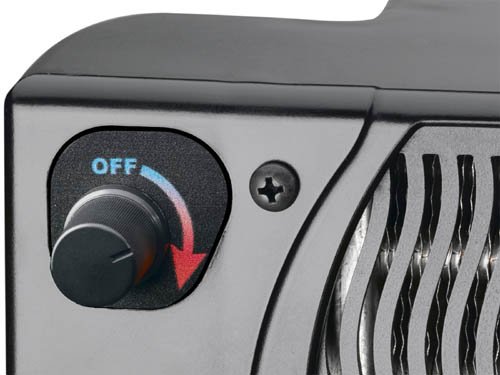

- - Integrated variable-speed switch
Specifications
- - BTU MAX: 4,000/hr
- - FAN OUTPUT: 0 to 100cfm
- - FAN: Integrated variable-speed
- - 12-v DC AMP DRAW: 0.5 amps
- - SIZE: 9.5"(w) x 5.5"(d) x 5.5"(h)
- - CONSTRUCTION: High strength nylon 6/6 housing
- - WEIGHT: 3.5 lbs
- - INCLUDED IN Box: Heater, mounting bracket, universal attachment screws, instructions.
The Aqua-Hot Installation Kit with Diverter Manifold is REQUIRED to ensure you are able to retain proper coolant flows to maintain correct engine operating temperature in side-by-side UTV installations.

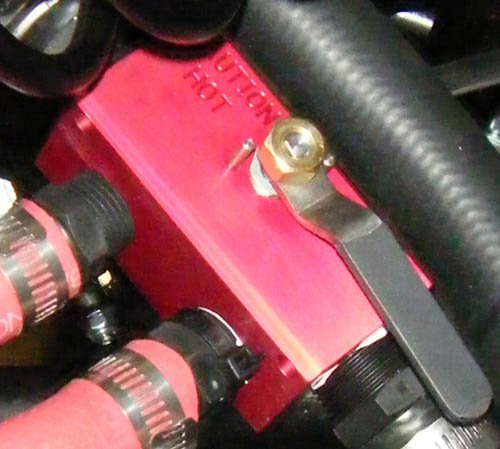

AQUA-HOT INSTALLATION KIT with DIVERTER MANIFOLD
Required when installing an AH-100 or AH-200 cabin heater in side-by-side or vehicle that does not have an existing heat circuit.
Features
- - Plumbs directly into 22mm, ¾" or 1" radiator hoses
- - Gives control of hot water throughput
- - Protects against engine overheating
- - Maximizes heat output
Kit Contains

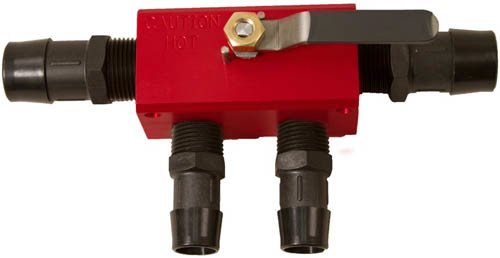

- - Aqua-Hot DIVERTER MANIFOLD VALVE©
- - BARBED FITTING ASSORTMENT: ½" NPT x ¾"; ¾" NPT x 1"; ¾" NPT x 22mm
- - BACKING PLATE
- - DRILL BIT – #9
- - HOLE SAW – 1.5" with pilot bit
- - GROMMET – 1" bore x ¼" groove
- - HEATER HOSE – 10- feet x ¾"
- - CONSTANT TENSION CLAMPS – #290
- - WORM DRIVE CLAMPS
- - 20ga RED WIRE – 10-feet
- - FUSE HOLDER – in-line blade type
- - FUSE – 5 amp Spade type
- - CONNECTORS – Butt-end 18-22 ga and Tap-splice 18-22 ga
- - TEFLON TAPE roll
The Aqua-Hot Installation Kit with Diverter Manifold is REQUIRED to ensure you are able to retain proper coolant flows to maintain correct engine operating temperature in side-by-side UTV installations.
