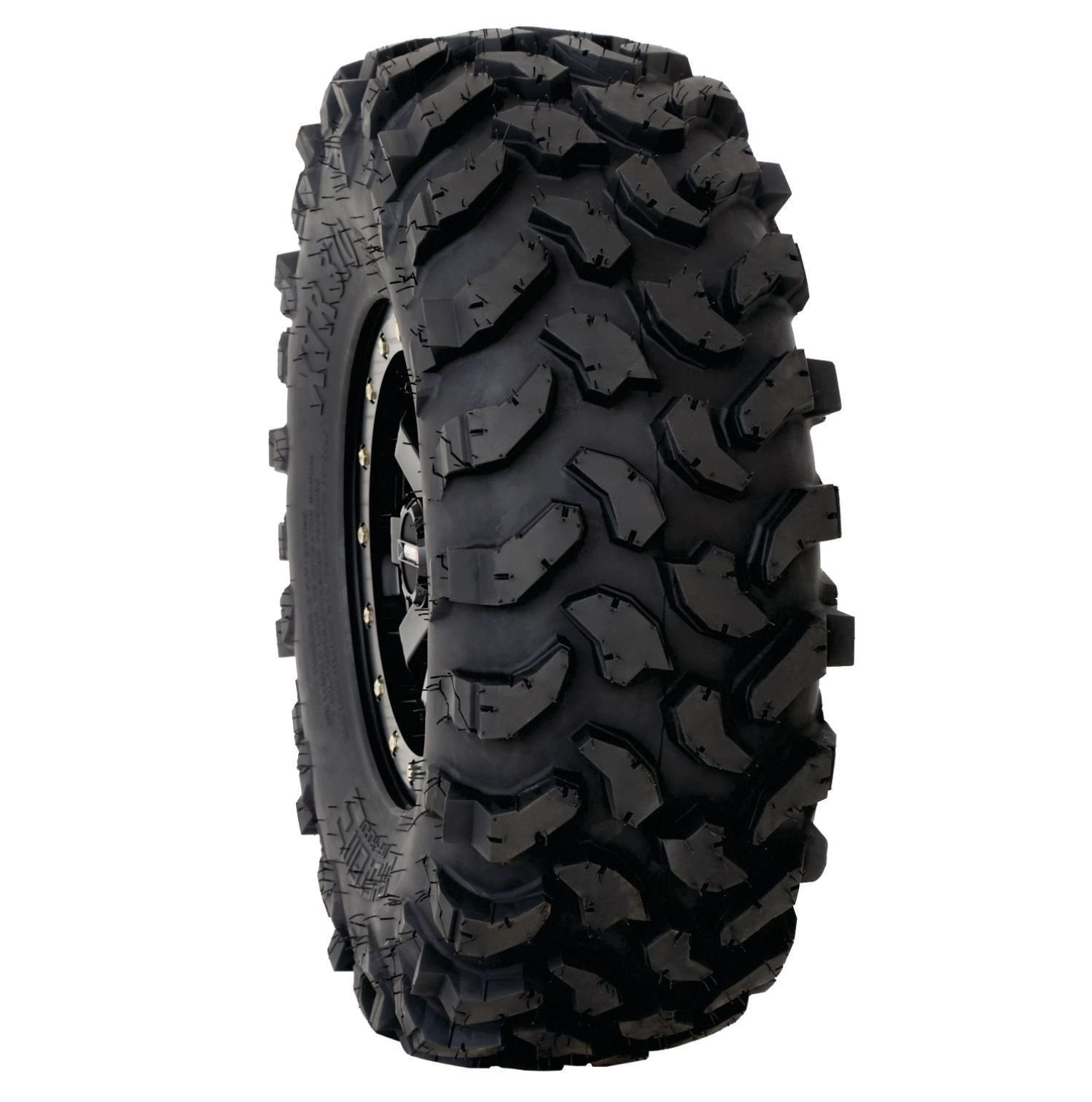

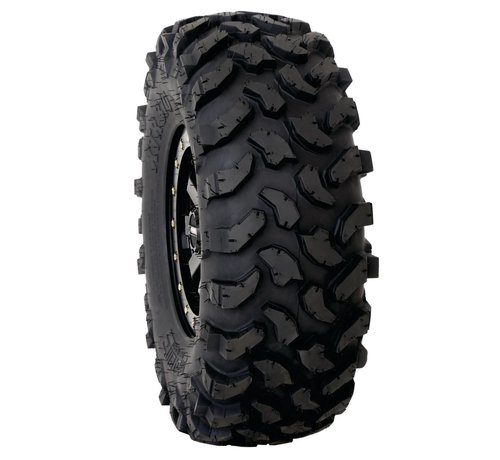

System 3 - XTR370 - X-Terrain Radial
8-ply-rated radial carcass is proven durable.
Advanced sidewall construction delivers sure-footed and comfortable ride.
Deep tread ranges from 0.75 to 1.0 in. on 28-32 in. tires, and 1.0 to 1.25 on 33 in. and larger tires.
Multi-angle tread blocks at shoulder for improved side bite.
Super-deep rim guard protects your wheel investment.
XTR370 X-Terrain Radial Specifications
SIZE - PLY RATING - DIAMETER - TREAD DEPTH - MAX PSI - MAX LOAD - WEIGHT - PART #
28 x 10R-14 - 8 ply rated - 28.1 in. - 0.75-1.0 in. - 18 psi - 1,002 lbs. - 37.2 lbs. - 522144
30 x 10R-14 - 8 ply rated - 30.1 in. - 0.75-1.0 in. - 18 psi - 1,134 lbs. - 41.4 lbs. - 522145
30 x 10R-15 - 8 ply rated - 30.1 in. - 0.75-1.0 in. - 18 psi - 1,113 lbs. - 41.9 lbs. - 522151
32 x 10R-14 - 8 ply rated - 32.1 in. - 0.75-1.0 in. - 18 psi - 1,293 lbs. - 45.9 lbs. - 522146
32 x 10R-15 - 8 ply rated - 32.1 in. - 0.75-1.0 in. - 18 psi - 1,260 lbs. - 45.6 lbs. - 522147
33 x 10R-15 - 8-ply rated - 33.1 in. - 1.0-1.25 in. - 18 psi - 1,350 lbs. - 53.6 lbs. - 522152
35 x 10R-15 - 8-ply rated - 35.1 in. - 1.0-1.25 in. - 18 psi - 1,452 lbs. - 59.1 lbs. - 522153
35 x 10R-20 - 8-ply rated - 35.1 in. - 1.125-1.40 in. - 18 psi - 1,353 lbs. - 55.1 lbs. - 522154
