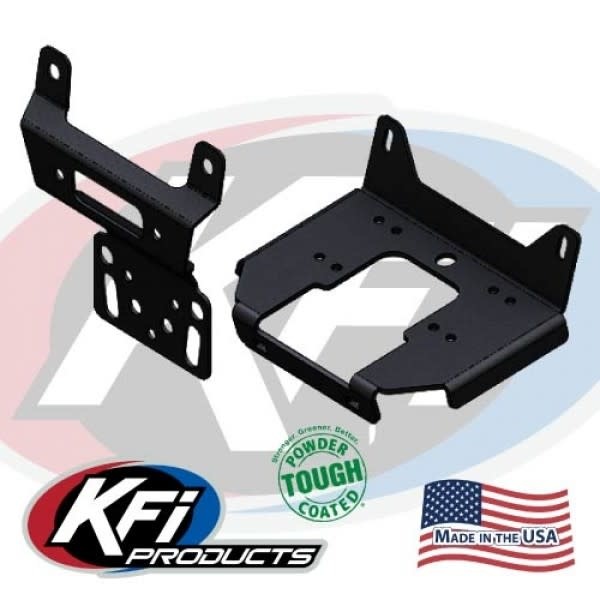

KFI Winch Plate - 101735 (Polaris RZR)
Polaris RZR | Years |
1000 RZR S | '16-20 |
1000 RZR S 4** | '18-20 |
1000 RZR XP Models: (Premium / Ride Command / Dynamix / LE) |
'14-20 |
1000 RZR XP 4** Models: (Premium / Ride Command / Dynamix / LE) |
'14-20 |
900 RZR Models: (EPS / Premium / Fox Edition) |
'15-20 |
900 RZR 4** | '15-18 |
900 RZR S Models: (EPS / Premium) |
'15-20 |
900 RZR S 4** | 2018 |
Turbo RZR XP Models: (LE / Dynamix) |
'16-20 |
Turbo RZR XP 4** Models: (LE / Dynamix) |
'16-20 |
Polaris General | Years |
General 1000 EPS | '16-20 |
General 1000 EPS Deluxe | '16-20 |
General 1000 EPS Premium | '16-20 |
General 4 1000 | '16-20 |
** = Requires the purchase of#UTV-WEK (wire extension kit) Due to location of battery on RZR.
Direct replacement for #101700 & #101705
Mount Designed to work with the following Winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AS-50
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:Vantage 2000-3000lb
- WARN:ProVantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE3500
- CYCLE COUNTRY :Work Power 2500 / Powermax 2500 and 3500
- BADLAND: Standard Winches (Click Here for Details)
- CHAMPION : Standard Winches (Click Here for Details)
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
- SMITTYBILT :XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up
- All with 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
- Traveller:1078088 / 1087302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
- Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP3
Specifications:
- 100% MADE IN USA
- Constructed of 3/16" steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- Roller fairlead and winch not included
