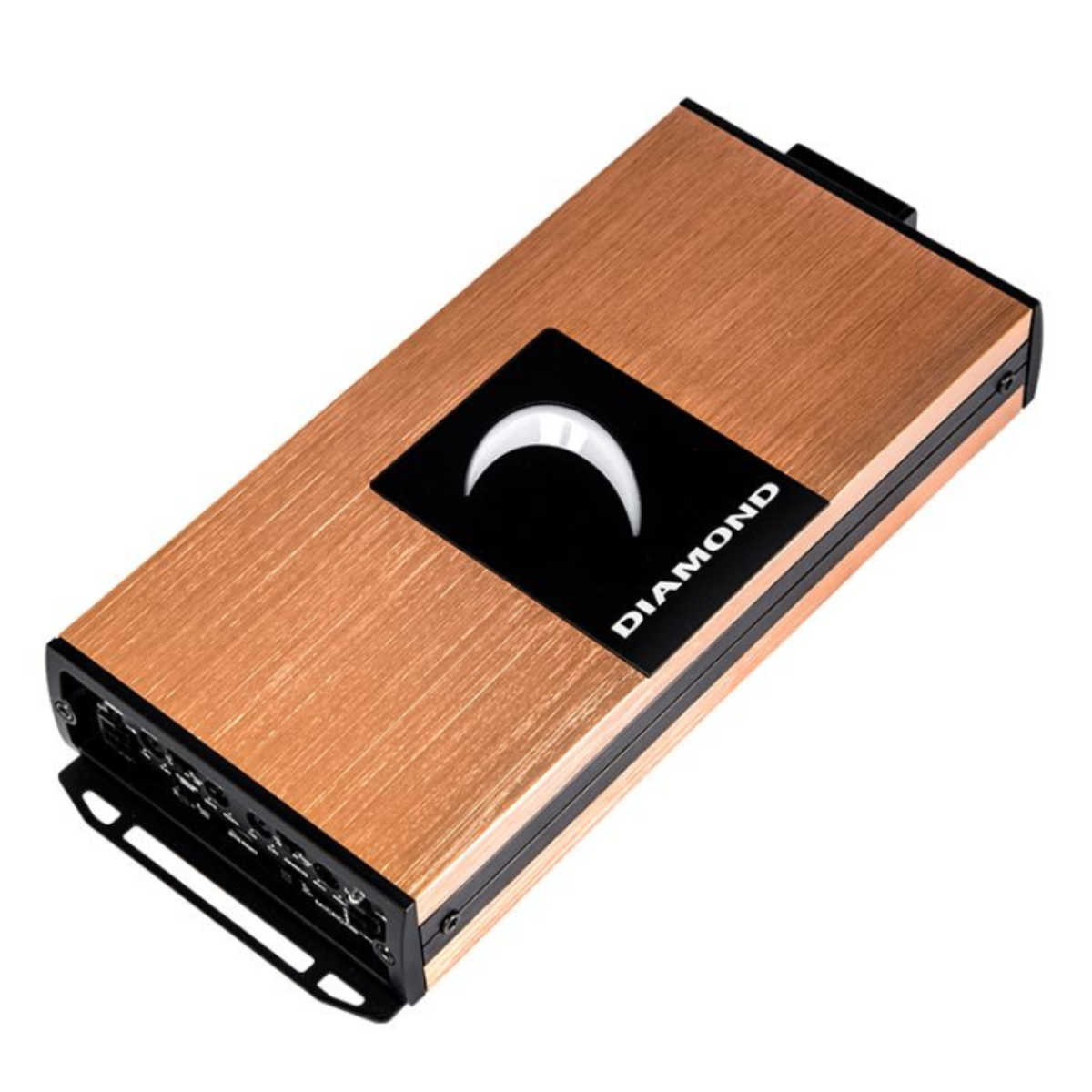

Diamond Audio - 4 Channel Micro AMP - MICRO4V2
Diamond Audio
Delivery time:
1-3 days depending on location
4-Channel Micro Class-D Amplifier
Power Output:
80W RMS x 4 @ 4Ω
150W RMS x 4 @ 2Ω
300W RMS x 2 @ 4Ω Bridged
Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
Four layer, glass epoxy circuit board for enhanced performance and reliability
Full Range Class D amplifier technology
Bridgeable for high power operation (CH1+CH2/CH3+CH4)
Balanced differential inputs for superior noise rejection
Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
Input selector switch (2 CH / 4 CH)
Selectable auto-turn-on mode: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
Fully variable, 12dB per octave, electronic crossovers
Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller
Illuminated logo
Fully variable, 12dB per octave, electronic crossover
Variable 18dB per octave sub-sonic filter
Adjustable Bass EQ (45Hz: 0dB to +12dB)
Wired Remote Level Control included
THD: 0.5%
S/N Ratio (A weighted @ 1W): -85dBA
Low Input Level: 200mV - 10.0V
Bandwidth(-3dB): 10Hz - 35Hz
Variable High-Pass: 40Hz - 400Hz
Variable Low-Pass: 40Hz - 400Hz
Fuse Ratings - ATC: 40A
Dimensions: 9.07"L x 4.0"W x 1.46"H
1-year Manufacturer's Warranty
