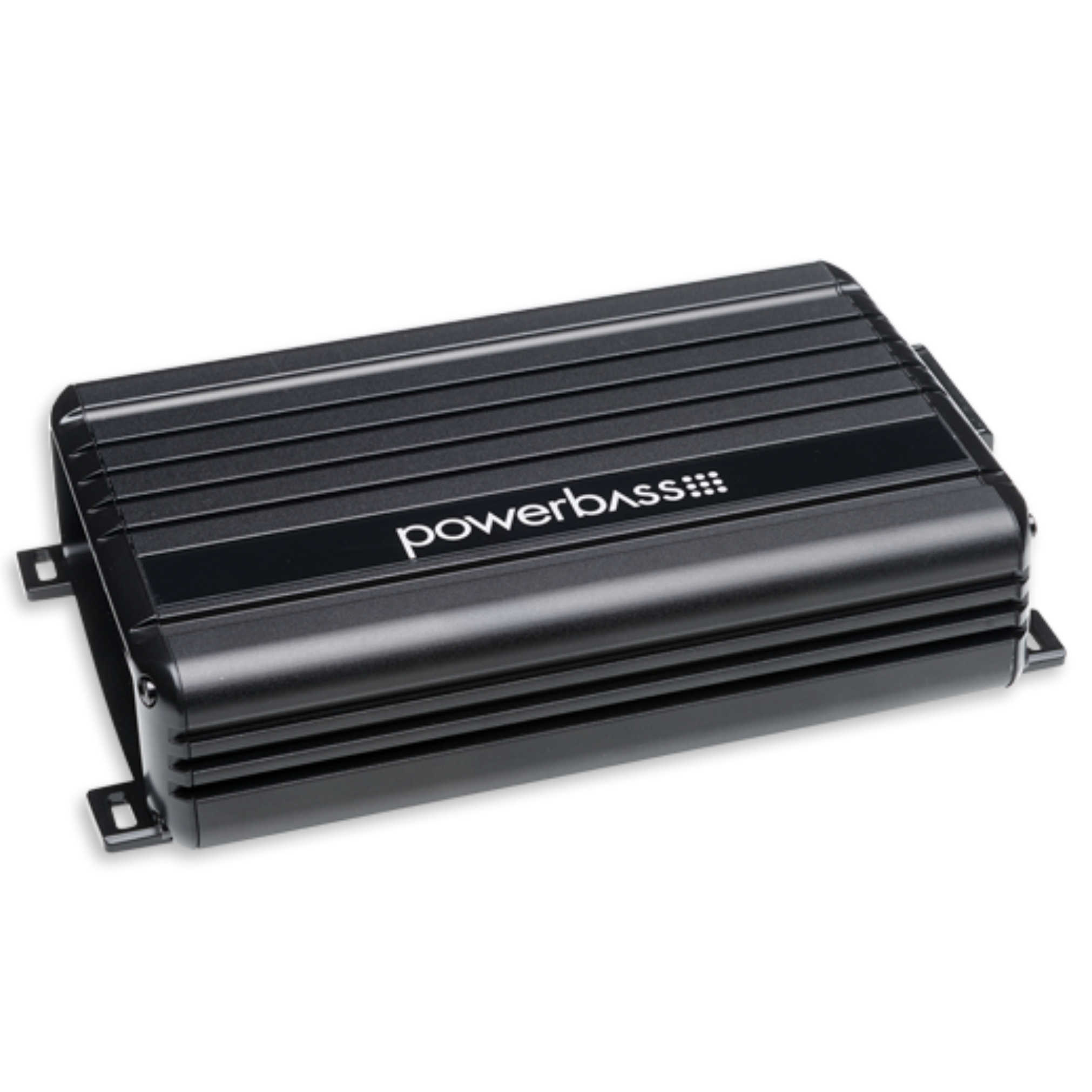

PowerBass - XL-250.2 2ch PowerSport Amplifier
- 500 Watt High Efficiency Full-Range Class D Design
- 2-OHM Stable Stereo Amplifier
- International Rectifier® Chip Set
- Ultra Low Current Draw
- Double Sided Copper Plated PCB
- Flipped Conformal Coated PC Board
- PWM MOSFET Power Supply
- Digital Sound Optimization Circuitry
- High Damping Control Circuit
- High Current Voltage Ripple Rejection Circuitry
- 3.5mm AUX Input
- Remote Soft Delay Turn On/Off Circuit
- Variable Low/High Pass Electronic Crossover
- Variable 12dB Bass Boost EQ
- Variable Gain Control
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Specifications
- Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
- Variable Subsonic Freq: N/A
- Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
- Equalization Boost/Cut: 0 - 18 dB
- Subwoofer Frequency Range: 10 Hz - 400 Hz
- Power Supply: Unregulated PWM
- Height: 1.6"
- Width: 4.5"
- Depth: 7.5"
- 4-ohm Mono Power: 500 watts x 1
- 4-ohm Power: 100 watts x 2
- 1-ohm Mono Power: N/A
- 2-ohm Power: 250 watts x 2
- Subwoofer EQ Frequency: 45 Hz
- Low-Pass Crossover Freq: 40 Hz - 400 Hz
- High-Pass Crossover Freq: 40 Hz - 250 Hz
- Peak Power: 800 watts
- Crossover Slope: 12 dB
- Dimensions (in Inches): 7.5" x 4.5" x 1.6"
- Input Sensitivity: 0.25 V - 10.0 V
- S/N Ratio: >85 dB
- Total Harmonic Distortion: 0.04% at Rated Power
- Strapped Output Power @ 2ohms: N/A
- Output Power (14.4 V) @ 4 ohm: 100 watts x 4
- Output Power (14.4 V) @ 2 ohm: 250 watts x 2
- Output Power (14.4 V) @ 1 ohm: N/A
- Channels (mono): 2
- Frequency Response: 10 Hz - 40 kHz
