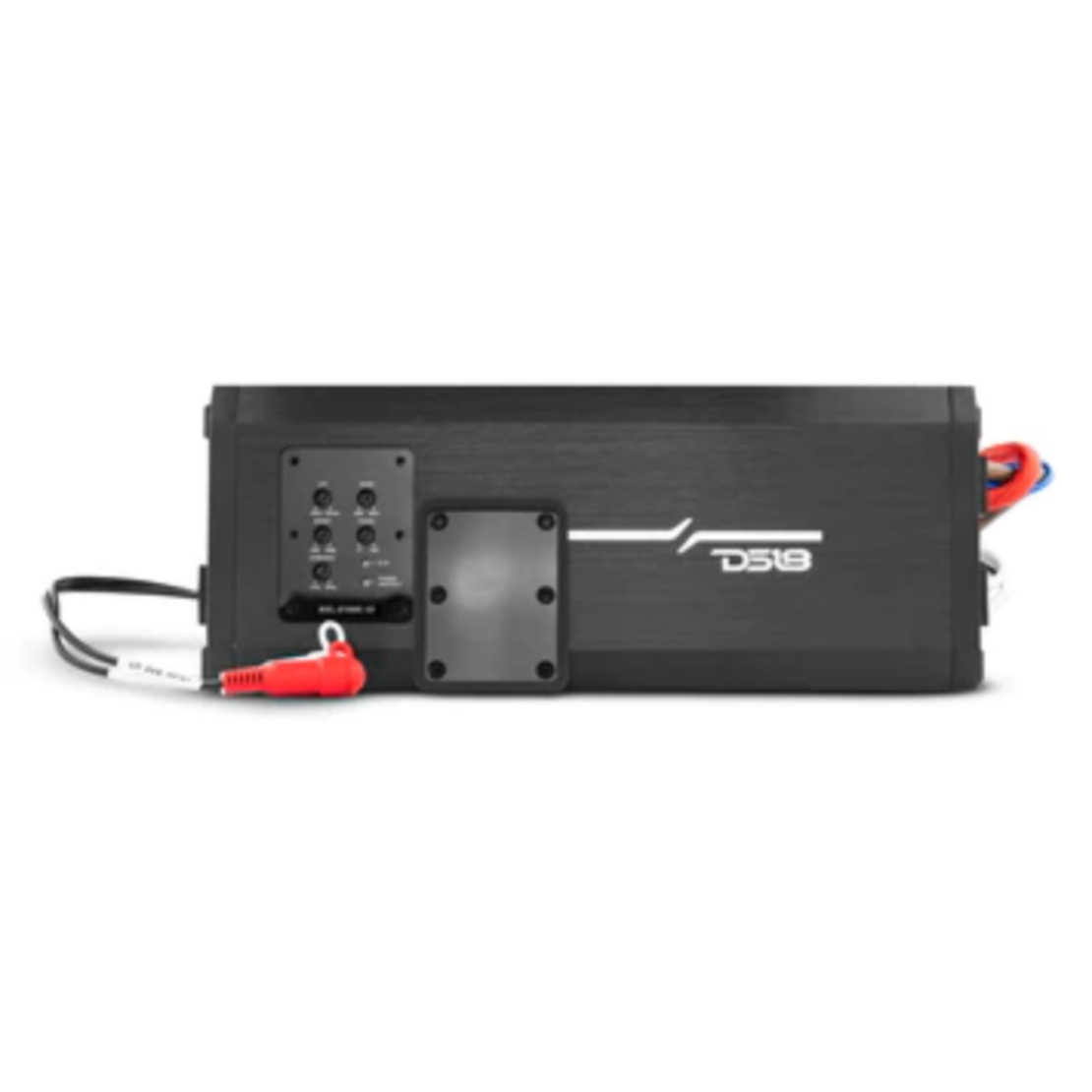

DS18 - HYDRO NXL-X1000.1D - Mono Amp

We are working to replace stock

  • SKU: NXL-X1000.1D
  • Backorder

Mono Channel Marine Waterproof Amplifier - Class D 1000 Watts RMS @ 1 Ohm 2000 Watts Peak

$ 499.95 (499.95 Incl. tax)

Add to wishlist

Product description

DS18 - HYDRO NXL-X1000.1D - Mono Amp

DS18 HYDRO NXL-X1000.1D 1-Channel Marine Waterproof Amplifier - Class D 1000 Watts RMS @ 1 Ohm 2000 Watts Peak

The DS18 NXL Series was developed for people who want a very a small audio footprint that is capable of putting out lots of power and sound in a small and waterproof package.

The NXL Series of amps are one of our most efficient lines with great power output all while withstanding the elements. These amps come in 1 channel, 4 channel, and 5 channel to help you power a wide array of speaker setups.

The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience.

All our units have stable and reliable 4-layer PCB layouts, IP67waterproof rating for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification.

The NXL Marine Amplifier series is exactly what the outdoors lover will need for their vehicle's audio to brave the trails, enjoy the lake, or any situation that needs a strong versatile waterproof amplifier.

AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE, WILL VOID WARRANTY

Highlights

  • The included a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
  • IP67 Waterproof Rating
  • UV, Salt and Fog Protection
  • Direct Power Harness Design with Marine Grade OFC Tinned Wires
  • Latest Digital Amplifier Design With SMC Technology

Great For:

  • Marine
  • Offroad
  • DIY Projects



NXL-X1000.1D Product Manual
Specifications
POWER
Total Watts (Peak) 2000W
RMS Power @ 4 ohm 350W
RMS Power @ 2 ohm 600W
RMS Power @ 1 ohm  1000W
RMS Power @ 4 ohm Bridge -
AUDIO
Frequency Response 10Hz-20KHz
Signal to Noise Ratio 1W@4Ω > 100dB
Efficiency @ 4ohm 0.83
Input Impedance 20KΩ
Channel Separation N/A
Total Harmonic Distortion (THD) < 0.05%
Low Level Input Range 200mV-5V
Selectable X-Over LPF Fixed
X-Over Filter Range 50Hz-250Hz
Bass Boost Range 0-18dB
Bass Boost Frequency 42Hz
Infrasonic Filter 10Hz-55Hz
Phase Selector 0-180°
FEATURES
Amplifier Class Digital
Amplifier Type Monoblock Subwoofer
Number of Channels 1
Minimum Impedance 1 Ohm
Led Indicators Power / Protection / Clip
Power Input Size 4GA Tinned OFC
Fuse Size 2 x 50A (100A)
Thermal Protection Yes (75°C)
Over-Load Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes (7-16V)
Body Color / Finish Black Brushed Aluminum
MEASUREMENT
Overall Length 11.8" / 302mm
Overall Wide 4.4" / 112mm
Overall Height 1.77" / 45mm
Heatsink Length 11" / 281.6mm
Gross Single Unit Weight 2.21kg
