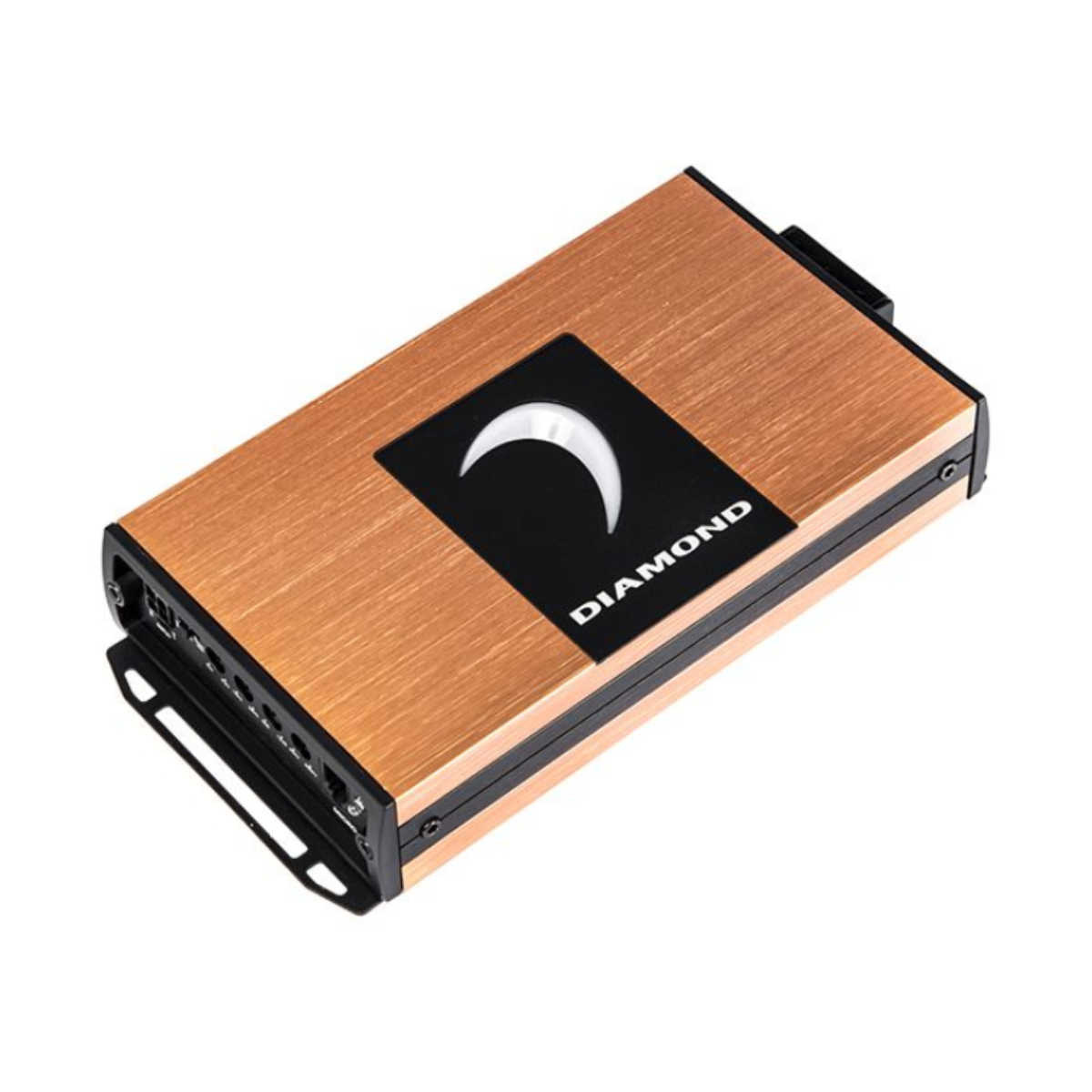

Diamond Audio - 1 Channel Mono Micro AMP - MICRO1V2
- Diamond Audio MICRO1V2
- Monoblock Micro Class-D Amplifier
- Power Output:
- 175W RMS x 1 @ 4Ω
- 300W RMS x 1 @ 2Ω
- 500W RMS x 1 @ 1Ω
- Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
- Four layer, glass epoxy circuit board for enhanced performance and reliability
- Full Range Class D amplifier technology
- Balanced differential inputs for superior noise rejection
- Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input
- Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
- Fully variable, 12dB per octave, electronic crossover
- Variable 18dB per octave sub-sonic filter
- Adjustable Bass EQ (45Hz: 0dB to +12dB) / remote level control included
- Illuminated logo
- THD: 0.5%
- S/N Ratio (A weighted @ 1W): -85dB
- Low Input Level: 200mV - 10.0V
- Bandwidth(-3dB): 10Hz - 350Hz
- Variable Low-Pass: 40Hz - 400Hz
- Variable Sub-Sonic: 10Hz - 55Hz
- Fuse Ratings - ATC: 25A
- Dimensions: 7.89"L x 4.0"W x 1.46"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Check out the Diamond Audio MICROV2 Series Amplifiers Owner's Manual
